Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: LILLIPUT
  • Model Number: TM-1018S
  • Panel: 10.1" LED IPS
  • Physical Resolution: 1280*800, support up to 1920*1080
  • Aspect Ratio: 16:9
  • Brightness: 350cd/m2
  • Contrast: 800:1
  • Viewing Angle: 170° / 170°(H/V)

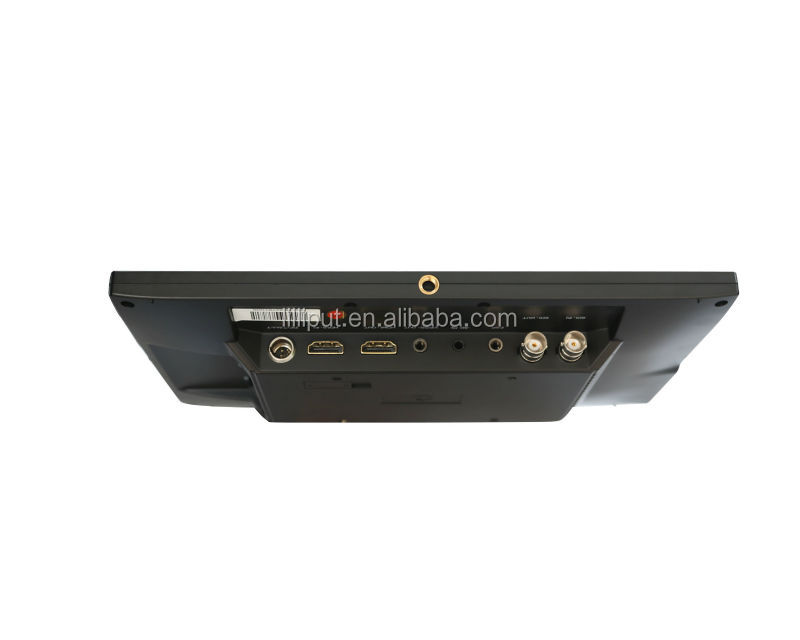

  • Input: 3G-SDI,HDMI,VGA,Composite,TALLY
  • Ouput: 3G-SDI,HDMI,Video
  • Audio: Speaker,Ear Phone Slot
  • Power: DC 7-24V

Packaging & Delivery

Delivery Time 2-3 working days

Specifications

1.IPS panel 170 wide viewing angles
2. High resolution: 1280X800
3.High contrast: 800:1
4.Abundant interfaces: HDMI, VGA

Broadcast HD 10.1 inch Field HDMI Monitor with Waveform, Audio level meter, Peaking Filter, False Colors, Histogram

TM-1018/P

TM-1018/O/P

TM-1018/S



Field monitor by LILLIPUT with Broadcast Quality for DSLR & Full HD Camcorder

Application for Field Broadcasting & Making Movies

Strongly recommend for Filmmakers and Pro Photographer!



Revolutionary Touch Operation

Release buttons free, and access to camera

auxiliary functions easily and quickly.

Multi-touch capacitive screen

170° Wide viewing angles

High resolution: 1280×800

High contrast: 800:1

Abundant interfaces

Wide voltage: DC 7-24V

Tally indicating

Slimmer & portable design



Small unit, Big wisdom

Lilliput creatively integrated waveform, vector scope, video analyser & touch control into on-camera monitor, which provides Luminance/Color/RGB histograms, Luminance/RGB parade/YCbCr parade Waveforms, Vector scope and other waveform modes; And measurement modes such as Peaking, Exposure & Audio level meter. These assist users to accurately monitor when shooting, making and playing movies/videos.



Level meter, Histogram, Waveform & Vector scope can be displayed horizontally at the same time;

Professional waveform measurement & color control to realise and record Natural color.

Advanced Functions

RGB histogram, color histogram, luminance histogram,

luminance waveform, YCbCr parade waveform,

RGB parade waveform, vector scope & audio level meter.



Histogram

Histogram consist of RGB, Color & Luminance histograms.

l  RGB histogram: shows the red, green, and blue channels in overlay histogram.

l  Color histogram: shows histograms for each of the red, green, and blue channels.

l  Luminance histogram: shows the distribution of brightness in an image as a graph of luminance.



The 3 modes can be selected to meet users' best needs and view visually the exposure of whole and each

RGB channels. Users have the full contrast range of video for easy color correction during post production.



Waveform

Waveform monitoring consist of Luminance, YCbCr parade & RGB parade Waveforms, which used

for measuring the brightness, luminance or chroma values from a video input signal. It not only

can warn the user for out-of-range conditions such as overexposure errors, but also assist

with colour correction & camera white and black balance.



Note: Luminance waveform can be enlarged horizontally on the bottom of display.



Vector scope

Vector scope shows how saturated the image is and where the pixels in the image land on the color

spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color

gamut range in real time.



Audio Level Meter

The Audio Level Meters provide numerical indicators and headroom levels.

It can generate accurate audio level displays to prevent errors during monitoring.



Functions:

> Camera Mode > Center Marker > Screen Marker  > Aspect Marker > Aspect Ratio> Check Field

 >  Underscan > H/V Delay > 8×Zoom > PIP > Pixel-to-Pixel > Freeze Input > Flip H / V> Color Bar



Touch Control Gestures

1. Slide up to active the shortcut menu.

2. Slide down to hide the shortcut menu.



Parameters:

Dislay

Panel

10.1" LED IPS

Physical Resolution

1280×800, support up to 1920×1080

Aspect Ratio

16:9

Brightness

350cd/m²

Contrast

800:1

Viewing Angle

170° / 170°(H/V)

Input

3G-SDI

1 (optional)

HDMI

1

Composite

1

TALLY

1

VGA

1

Output

3G-SDI

1 (optional)

HDMI

1 (optional)

VIDEO

1

Audio

Speaker

1 (built-in)

Ear Phone Slot

1

Power

Current

1200mA

Input Voltage

DC 7-24V

Battery Plate

V-mount / Anton Bauer mount /



F970 / QM91D / DU21 / LP-E6

Power Consumption

≤12W

Environment

Operating Temperature

0°C~50°C

Storage Temperature

-20°C~60°C

Dimension

Dimension(LWD)

250×170×29.6mm

Weight

630g



Accessories:

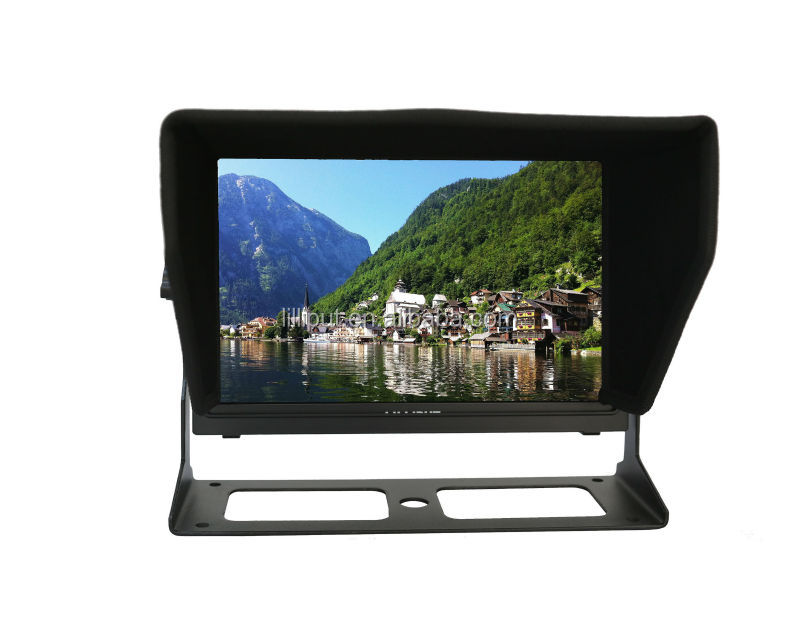

1. Folding sun shade

1 piece

2. VESA battery plate

1 piece

3. Battery plate (F-970, QM91D, DU21 or LP-E6)

2 pieces

4. HDMI A/C cable

1 piece

5. Mini XLR

1 piece

6. Composite cable

1 piece

7. Video output cable

1 piece

8. Shoe mount

1 piece

9. Battery plate bracket

1 piece

10. 12V DC adapter

1 piece

11. Gimbal bracket

1 piece

12. Suitcase

1 piece

13. V-mount / Anton Bauer mount (optional)

1 piece

14. VGA cable (optional)

1 piece

15. VESA folding bracket (optional)

1 piece

16. Li-ion battery (optional)

1 piece
