Newest Q7 Hot Selling 7 inch Full HD Dslr LCD Monitor With 3G-SDI HDMI input

FOB Reference Price:Get Latest Price
US $519-520 / Unit | 10 Unit/Units (Min. Order)
Supply Ability:
5000 Unit/Units per Month
Port:
Xiamen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
LILLIPUT
Model Number:
Q7
Size:
7" IPS
Physical Resolution:
1920*1200
Aspect Ratio:
16:10
Brightness:
500cd/m2
Contrast:
1000:1
Viewing Angl:
170°/170°(H/V)
INPUT/OUTPUT:
3G-SDI,HDMI
AUDIO:
Speaker,Ear Phone Slot
HDMI FORMAT:
Full HD ~ HD,1080p, 1080i, 720p, 576p, 576i, 480p, 486i
SDI FORMAT:
SMPTE-372/425MAB,Level A & Level B, Level B 2x, ITU-R BT.656
Packaging & Delivery
Packaging Details
lilliput packing
Delivery Time
2-3 working days

Precise Color

It features 7" 16:10 LCD panel with 1920x1200 Full HD resolution, 1000:1 high contrast, 170° wide viewing angles, 500cd/m² high brightness, which offers outstanding viewing experience.


4 times clear than standard definition display



Integrated New Advanced Functions

Lilliput creatively integrated column (YRGB peak), time code, waveform, vector scope & audio level meter into field monitor. And multiple modes for optional.

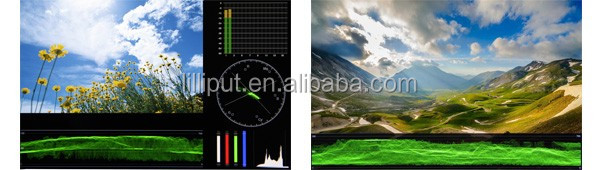

                          Waveform PiP mode                                             Waveform Y - enlarged horizontally mode


Full screen mode

Metal Housing Design

Thinner (22mm) with a firm metal body, makes a better protection from vibration, drop & bad environment outside. Longer life time for the device.

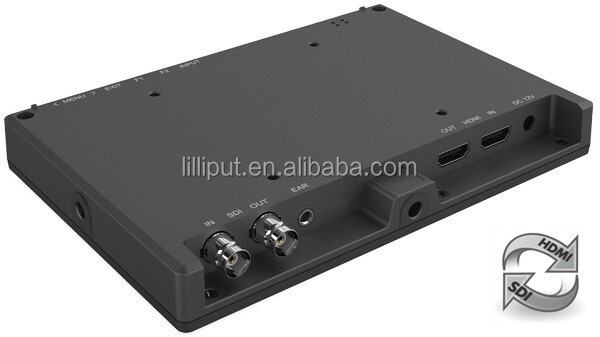

SDI and HDMI Cross Conversion

With high quality HDMI & 3G-SDI inputs, make sure that precise color can be controlled under multiple displays conveniently.
The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal. In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output.

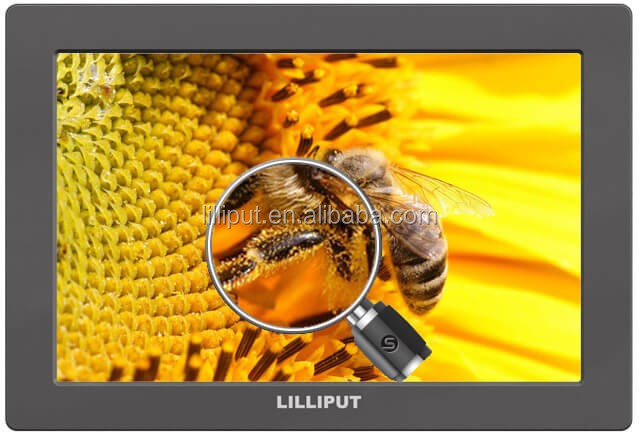

Pixel Zoom

Creatively integrated Pixel Zoom function into Q7, which can enlarge and move the selected area and make details of image much more obvious.

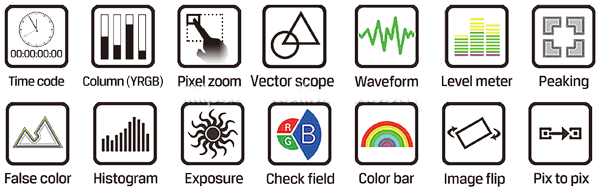

More Auxiliary Functions

More professinal functions assist users to accurately monitor when shooting, making and playing movies/videos.





DISPLAY
  Display Screen  7" IPS
  Physical Resolution  1920×1200
  Aspect Ratio  16:10
  Brightness  500cd/m2
  Contrast  1000:1
  Viewing Angle  170°/170°(H/V)
INPUT
  3G-SDI  1
  HDMI  1
OUTPUT
  3G-SDI  1
  HDMI  1
AUDIO
  Speaker  1
  Ear Phone Slot  1
SDI FORMAT
  SMPTE-125M  480i(59.94)
  1080i(60/59.94/50)
  1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-292M  1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-296M  720p(60/59.94/50/30/29/25/24/23.98)
  SMPTE-372M  720p(60/59.94/50)

1080i(29.97/25/24/23.98)
  1080p(60/59.94/50/30/29.97/25/24/23.98)
  SMPTE-425M-AB  1080p(60/59.94/50)
  -Level A & Level B  720p(60/59.94/50/30/29.97/25/24/23.98)
  Level B 2x  1080i(60/59.94/50)
  ITU-R BT.656  576i(50)
HDMI FORMAT
  Full HD ~ HD  1080p, 1080i, 720p, 576p, 576i, 480p, 486i
POWER
  Current  1A
  Input Voltage  DC 7-24V
  Battery Plate  V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption  ≤12W
ENVIRONMENT
  Operating Temperature  -20℃~60℃
  Storage Temperature  -30℃~70℃
DIMENSION
  Dimension(LWD)  182×124×22mm
  Weight  405g
