Quick Details

  • Products Status: Stock

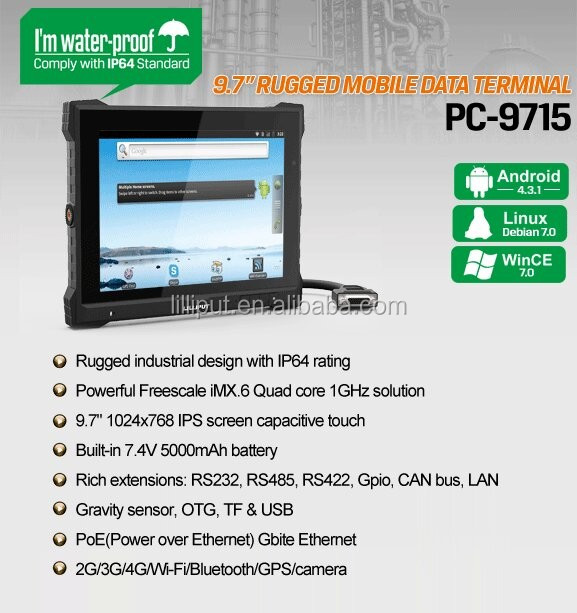

  • Type: Mobile Data Terminal
  • Brand Name: LILLIPUT
  • Model Number: PC-9715
  • Place of Origin: China (Mainland)
  • OS: Android 4.3.1 / Linux Debian 7.0 / WinCE 7.0
  • CPU: Freescale iMX.6 Quad core 1.0GHz
  • GPU: 3D 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, CL EP
  • Core: ARM Cortex-A9
  • Memory: ROM: 8GB Flash, RAM: DDR3-1066 (533MHz) 1GBytes, up to 2GBytes
  • Expansion Storage: Micro SD card slot, USB Device 2.0, USB host 2.0
  • LAN: LAN Ethernet
  • Audio: Ear phone jack *1, Microphone jack (optional)
  • Interface: RS232*4 / RS232*3, RS485*1 / RS232*2, RS422*1, RS485*1
  • Optional Extensions: 3G\Wi-Fi & Bluetooth\Camera\GPS\ACC\PoE (Power over Ethernet)

Packaging & Delivery

Packaging Details: Lilliput packing
Delivery Detail: 2-3 working days



Display Screen  9.7" IPS
  Resolution  1024×768
  Touch Panel  Capacitive
  Brightness  350cd/m2
  Aspect Ratio  4:3
  Contrast  900:1
  Viewing Angle  178°/ 178°(H/V)
  OS  Android 4.3.1 / Linux Debian 7.0 / WinCE  7.0
  CPU  Freescale iMX.6 Quad core 1.0GHz
  GPU  3D 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, CL EP
  Media  Audio: MP3, MP4, WMA, WAV…
  Video Decode 1080p60 H.264
  Video Encode 1080p30 H.264 BP/ Dual 720p
  Core  ARM Cortex-A9
  Memory  ROM: 8GB Flash, RAM: DDR3-1066 (533MHz) 1GBytes, up to 2GBytes
  Expansion Storage  Micro SD card slot, USB Device 2.0, USB host 2.0
  LAN

  LAN Ethernet

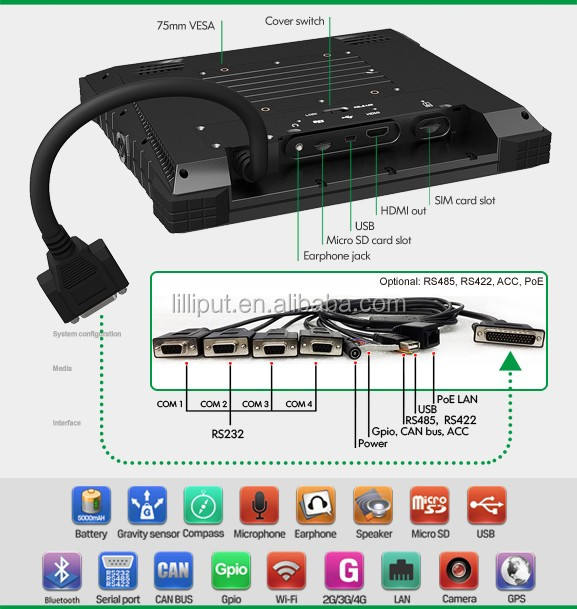

  Interface  RS232×4 / RS232×3, RS485×1 / RS232×2, RS422×1, RS485×1
  (optional RS485 / RS422 interface)
  GPIO input×4, GPIO output×6
  Audio  Ear phone jack ×1, Microphone jack (optional)
  Optional Extensions  3G\Wi-Fi & Bluetooth\Camera\GPS\ACC\PoE (Power over Ethernet)
  Power Consumption  9W(Normal mode), 24W(Charging mode)
  Working Temperature  -20 - 60ºC
  Storage Temperature  -30 - 70ºC
  Power Supply  DC 9-36V
  Battery  Built-in 5000mAh (optional)

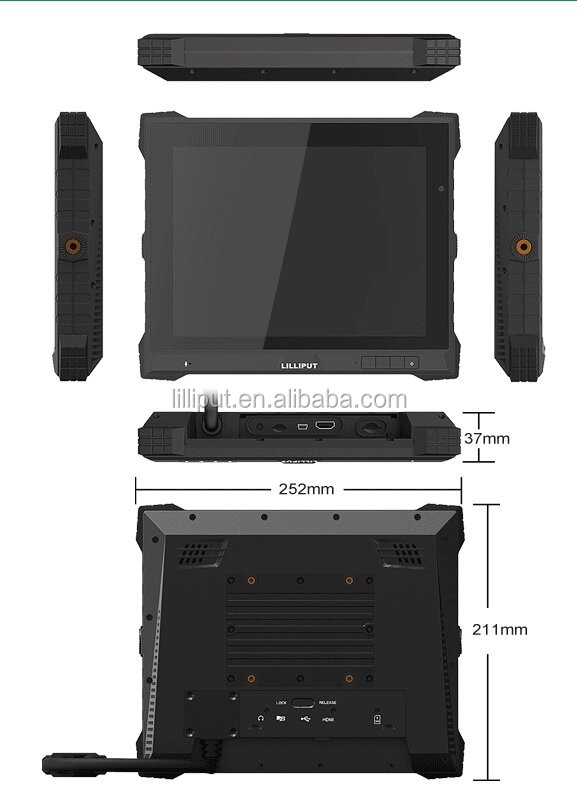

  Dimension(LWD)  252 × 211 × 37mm
  Weight  1340g



Accessories:

Extended cable               1piece

Power adapter                1piece

Mini USB cable               1piece

Driver disk                        1piece

Operation manual          1piece

Touch pen                        1piece

9.7" Gimbal bracket       1piece

VESA 75mm rail             1piece

VESA folding                   1piece

GPS antenna(optional)

5000mAh Li-ion battery (optional)

Micro SD card (optional)
