Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: LILLIPUT
  • Model Number: RM-0208S
  • Display Screen: 8*2" 8bit TFT LCD
  • Physical Resolution: 640*240,supports up to 1920*1080
  • Brightness: 250cd/m2
  • Contrast: 300:1
  • Viewing Angle: 80°/70°(H / V)
  • INPUT: 8*3G-SDI,1*RS422
  • OUTPUT: 8*3G-SDI
  • SDI FORMAT: SMPTE-125M/292M/296M/372M/425M-AB/-Level A & Level B/Level B 2x/
  • HDMI FORMAT: 1080p, 1080i, 720p, 576p, 576i, 480p, 486i
  • Operating Temperature: 20℃~60℃

Packaging & Delivery

Packaging Details: LILLIPUT packing
Neutral packing
Custom packaging
Delivery Detail: 3 working days

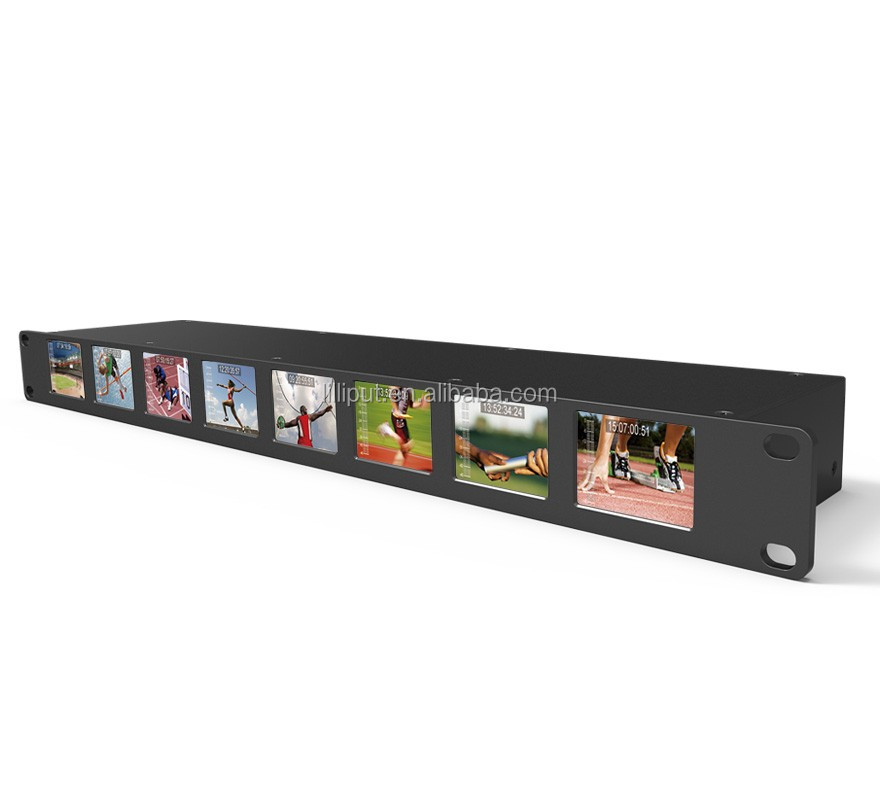

8 × 2” 1RU Rackmount Monitors with SDI equalization and re-clocking



UMD Switch Function
UMD character sending window can enter not more than 32 half-width characters after function activated, click Data Send button will display entered characters on the screen.



Audio Level Meter
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. It supports 2 tracks under SDI mode.



Time Code
It supports Linear time code(LTC) and Vertical interval time code(VITC). The time code display on Lilliput monitor is synchronizing with that of Full HD camcorder's. It's very useful for identifying specific frame in film and video production.



RS422 Smart Control
With relevant software, using laptop, PC or Mac to set and adjust functions of each monitor, such as UMD, audio level meter and time code; Even control the brightness and contrast of each monitor.



1RU Rack Mount
It has a various of mounting methods for broadcast, on-site monitoring and live broadcast van, etc. As well as setup a video wall of rack monitors in control room and see all the scenes. A 1U rack for a customized monitoring solution also can be supported for viewing from different angles and images displays.



DISPLAY
  Display Screen  8×2" 8bit TFT LCD
  Physical Resolution  640×240,supports up to 1920×1080
  Aspect Ratio  4:3
  Brightness  250cd/m2
  Contrast  300:1
  Viewing Angle  80°/70°(H / V)
INPUT
  3G-SDI  8
  RS422  1
OUTPUT
  3G-SDI  8
SDI FORMAT
  SMPTE-125M  480i(59.94)
  1080i(60/59.94/50)
  1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-292M  1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-296M  720p(60/59.94/50/30/29/25/24/23.98)
  SMPTE-372M  720p(60/59.94/50)

1080i(29.97/25/24/23.98)
  1080p(60/59.94/50/30/29.97/25/24/23.98)
  SMPTE-425M-AB  1080p(60/59.94/50)
  -Level A & Level B  720p(60/59.94/50/30/29.97/25/24/23.98)
  Level B 2x  1080i(60/59.94/50)
  ITU-R BT.656  576i(50)
HDMI FORMAT
  Full HD ~ HD  1080p, 1080i, 720p, 576p, 576i, 480p, 486i
POWER
  Current  1500mA/15V
  Input Voltage  DC 12-24V
  Power Consumption  ≤23W
ENVIRONMENT
  Operating Temperature  -20℃~60℃
  Storage Temperature  -30℃~70℃

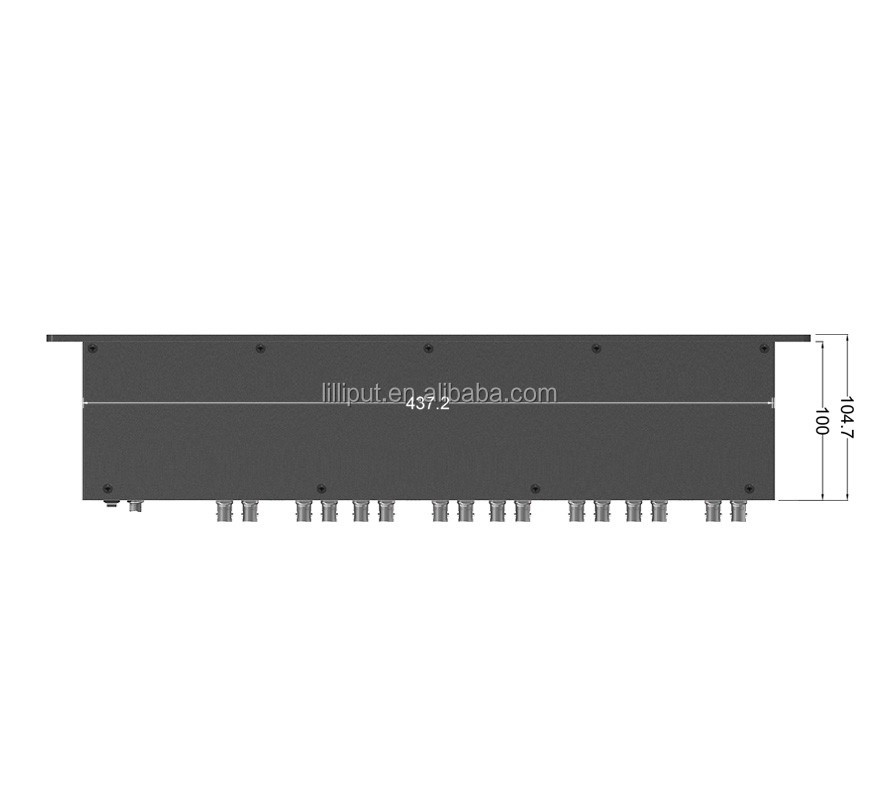

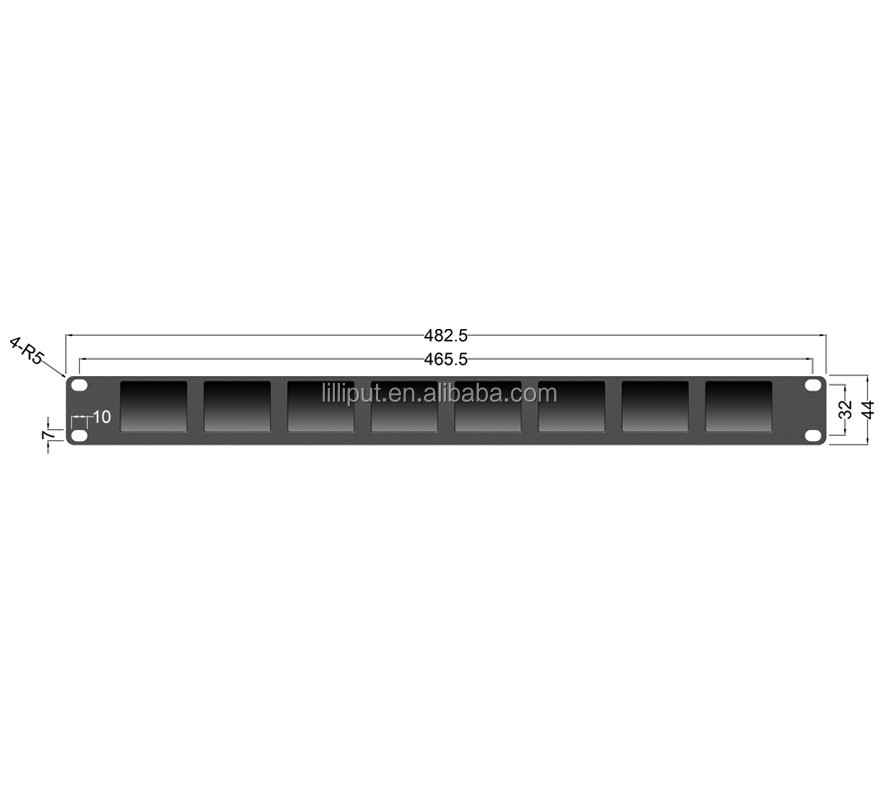

DIMENSION
  Dimension(LWD)  482.5×105×44mm
  Weight  1555g
